Replacing a Legacy Device

The device icon enables you to distinguish between a current device and a legacy device. The current device has a yellow fill, and a legacy device has a white fill.

sb ddng485 legacy current
Replace existing legacy device with the current device:

  1. Connect SB to the spur side of the legacy DDNG485 (Port 1).

  2. Click sb icon insert device from network Insert Devices from Network ( Ctrl+L ).

  3. Sign on the existing device. Once detected by SB, click sb icon add and load Add and Load Devices to add the device to the job.

  4. Close the Insert Devices from Network window.

  5. Install the new device.

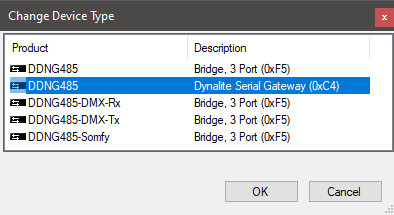

  6. In System view, select the device and click sb icon change device type Change Device Type ( Alt+Y ).

  7. Select Dynalite Serial Gateway (0xC4).

    sb ddng485 type serial gateway

  8. Click sb icon save to device Save to Device ( F12 ).

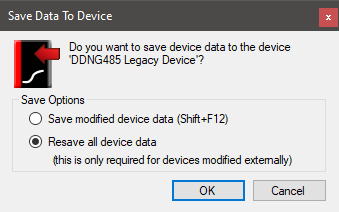

  9. Select Resave all device data and click OK.

    sb save ddng485 all data
