Room Devices
The room sub-network (spur) consists of FCUC controllers, expansion controllers, sensors, dry contact input devices, integrated devices, and user interfaces.
| Refer to each device’s Specification Sheet for detailed information (including load ratings and limitations) BEFORE making final selections. |

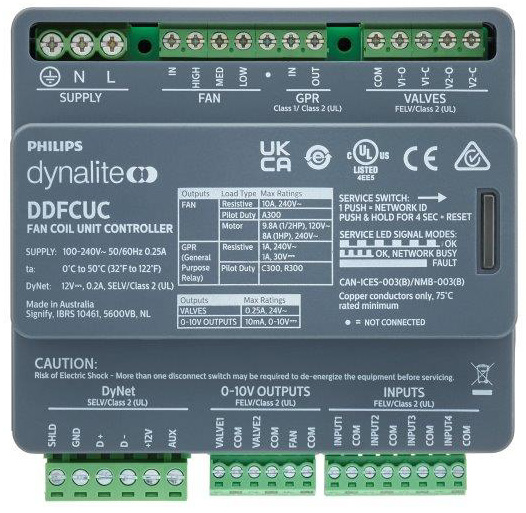

DDFCUC
-
Fan Coil Unit Controller
-
1 x Direct HVAC control
-
Fan speed and Hot/Cold valve adjust
-
Compatible with 0-10V and 24VAC valves
-
4 x configurable inputs
-

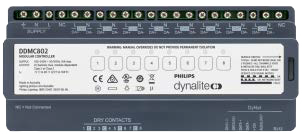

DDMC802
-
Multipurpose Controller
-
8 x Modular output channels compatible with the following modules:
-
DGCM102 - 1 x Motorized curtain/blind control
-
DGFM102 - 1 x Fan control (CE only)
-
DGRM204 - 2 x Relay control
-
DGBM200 - 2 x Signal dimming control (1-10V / DSI / DALI Broadcast)
-
DGTM104 - 1 x Trailing-edge dimming control
-
DGTM202 - 2 x Trailing-edge dimming control
-
DGTM402 - 4 x Trailing-edge dimming control
-
DGLM105 - 1 x Leading-edge dimming control
-
DGLM202 - 2 x Leading-edge dimming control
-
DGLM402 - 4 x Leading-edge dimming control
-
-
8 x Dry contact inputs
-

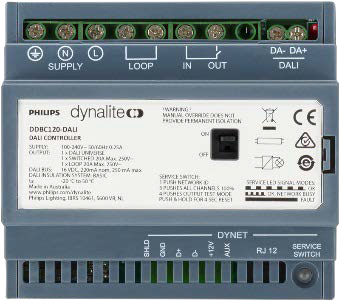

DDBC120-DALI
-
Single-Universe DALI-2 Controller
-
1 x DALI-2 addressable output (DALI 209)
-
1 x Switched power relay eliminates wasted standby consumption by cutting power when all lights are dimmed to 0%

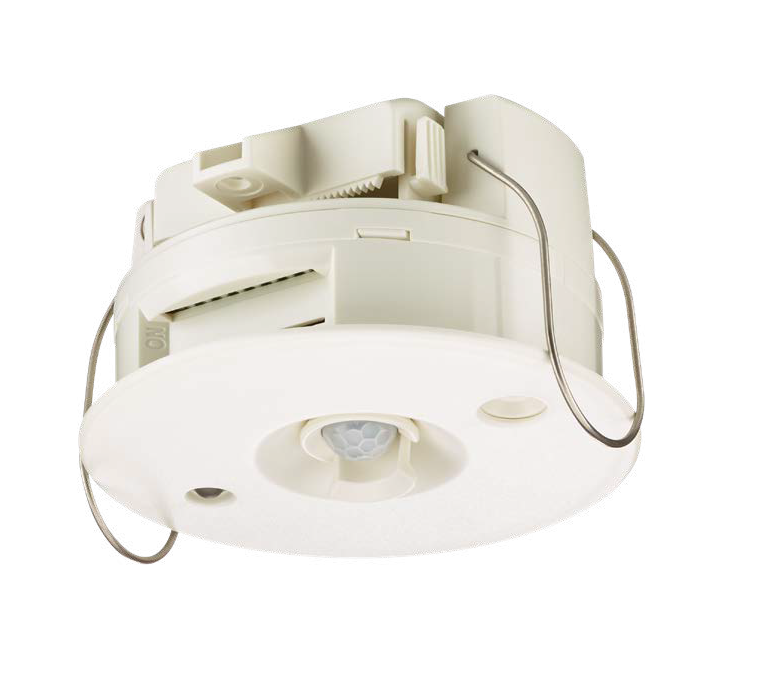

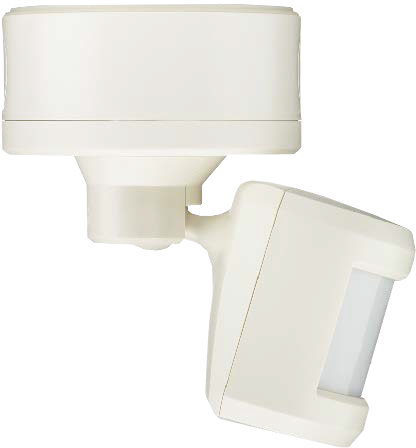

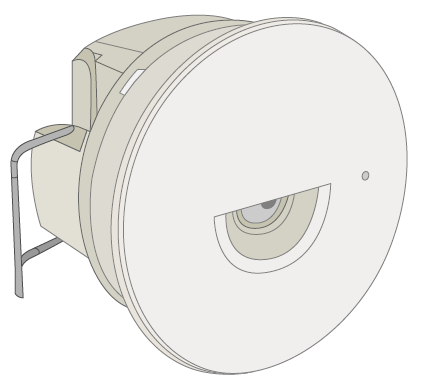

DUS360CR, DUS180WR, DUS90CS
-
Multifunction Sensor
-
1 x PIR occupancy sensor
-
1 x Light sensor
-
1 x Infrared sensor (RC5 compatible)
-
|
|
|
DUS804CS-UP
-
Multifunction Sensor
-
1 x Ultrasonic occupancy sensor
-
1 x PIR occupancy sensor
-
1 x Light sensor
-
1 x Infrared sensor (NEC IR remote control)
-
Antumbra – PAxBPA, PAxBPE, PADPA, PADPE
-
User Interface
-
2/4/6-button AntumbraButton
-
6-button AntumbraDisplay
-
Range of colors and finishes
-
Custom icons/text
-
Wall-wash light effect
-
1 x Proximity sensor
-
1 x Temperature sensor
-
1 x Ambient light sensor
-
Online configurator
-
